Nordic Semiconductor ASA NRF52832-QFAA-R

NRF52832-QFAA-R
Mfg. Part Number
NRF52832-QFAA-R
Manufacturer
Product Category
RF Transceiver ICs
Brief Description
IC RF TxRx MCU Bluetooth v5.0 General ISM >1GHz ANT Bluetooth 2.4GHz 48-VFQFN-48 New arrival stocks ship now
Datesheet Download
Download
Availability of NRF52832-QFAA-R

Available Quantity

23220 Pieces

Can ship today


Ships from: HONGKONG
Date Code: Newest Date Code
Manufacturer lead time 10 weeks

Marketing Price
$ 2.50000
Our Price
$ 1.80000

QUANTITY



EIS Components is the stocking Distributor of NRF52832-QFAA-R, we specialize in Nordic Semiconductor ASA all series electronic components. NRF52832-QFAA-R can be shipped within 24 hours after order. If you have any demands for NRF52832-QFAA-R, Please kindly submit an RFQ here or send us an email. We will reply you as soon as possible.
NRF52832-QFAA-R Order Process
Add Parts to RFQ form
Submit RFQ
We reply within 24 hours
You confirm order
Payment
Ship out your order
Specifications of NRF52832-QFAA-R
Internal Part NumberEIS-NRF52832-QFAA-R
Lead Free Status / RoHS StatusLead free / RoHS Compliant
Moisture Sensitivity Level (MSL)2 (1 Year)
Production Status (Lifecycle)In Production
ConditionNew with factory original sealed packing
Standard Package Quantity3000 pieces / reel
Packing Typetape and reel
Country Of OriginPhilippines
ECCNEAR99
HTS Code8542390000
CategoryRF Transceiver IC Bluetooth 5.0
TypeTxRx + MCU
RF Family/StandardBluetooth, General ISM > 1GHz
Device CoreARM Cortex M4F
Data Bus Width32 Bit
Family SeriesNRF52832
I/O Voltage3.6 V
Instruction Set ArchitectureRISC
Interface TypeI2C UART SPI
Maximum Speed (Frequency)2400 MHz 2.4GHz
ProtocolANT Bluetooth v5.0
ModulationGFSK
Data Rate (Max)2Mbps
Power - Output4dBm
Sensitivity-96dBm
Memory Size512kB Flash, 64kB RAM
Operating Supply Voltage1.7 ~ 3.6 V
Operating Temperature-40 to 85 °C
Program Memory Size64 KB
Program Memory TypeFLASH
Mounting TypeSurface Mount SMD
Package Case48-VFQFN Exposed Pad (6x6)
Number of pins48 pins
Alternative Replacement1490-1052-2 1490-1052-1 1490-1052-6 NRF52840 NRF51822
Weight0.0005KG
Related LinksNRF5283, NRF52832-QFAA-R Datasheet, Nordic Semiconductor ASA Distributor

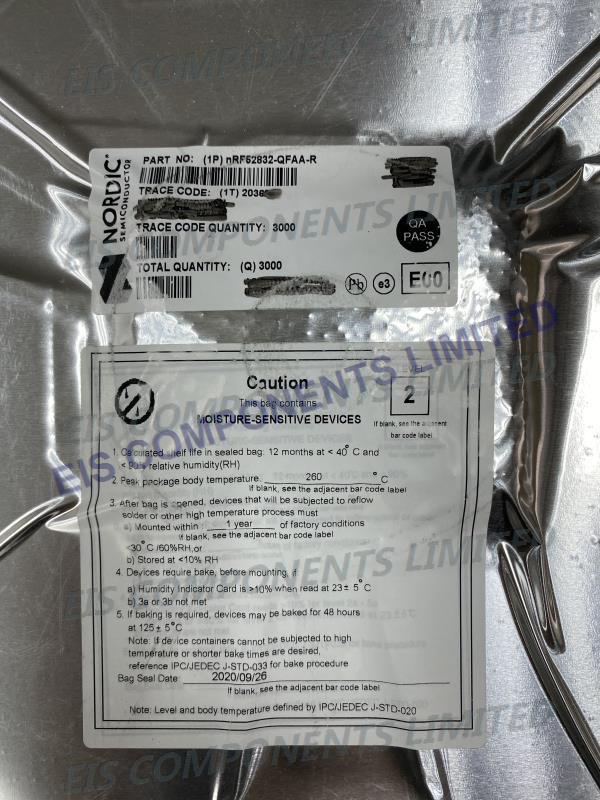

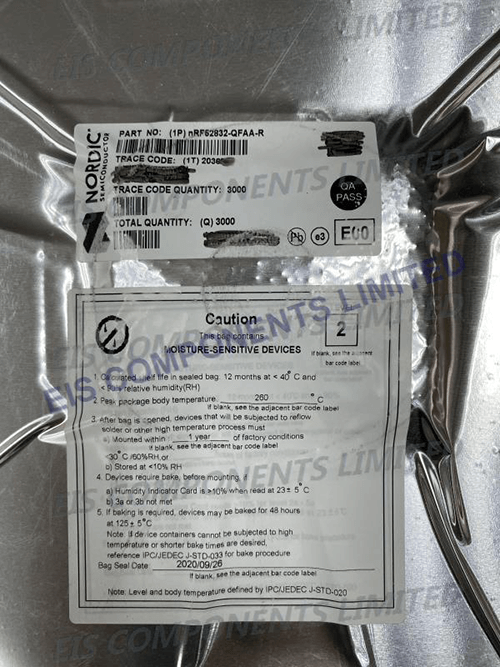

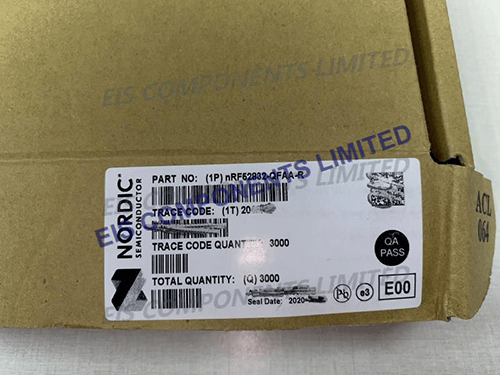

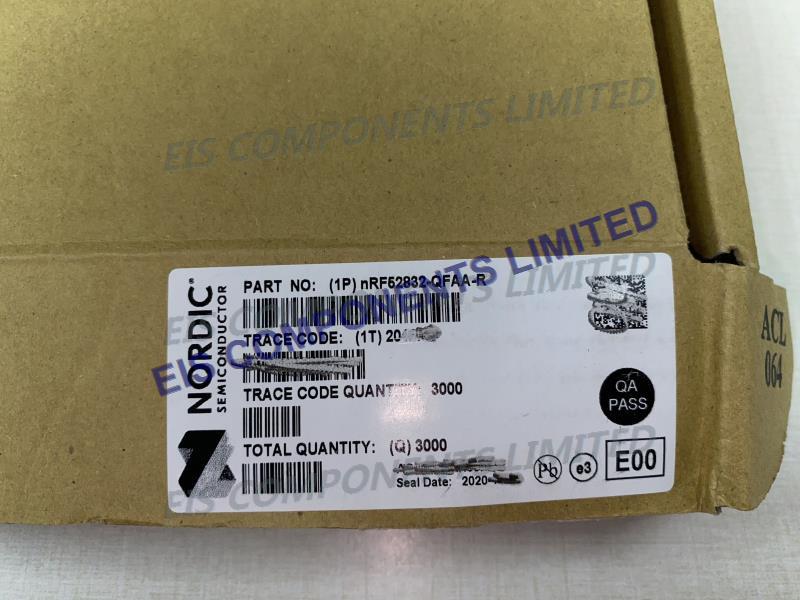

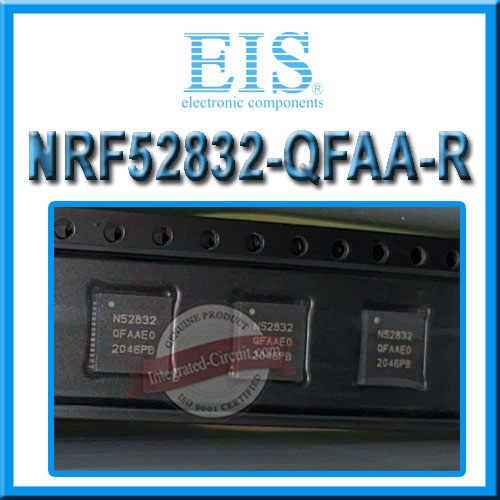

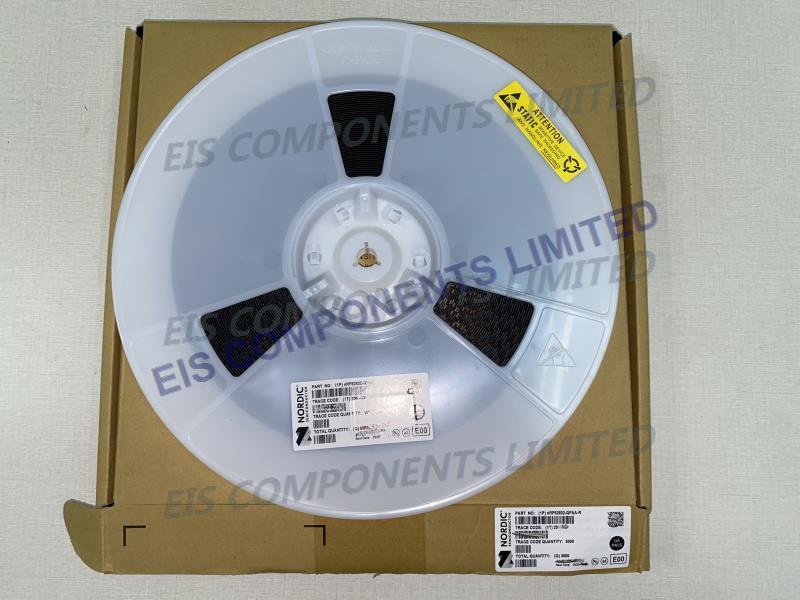

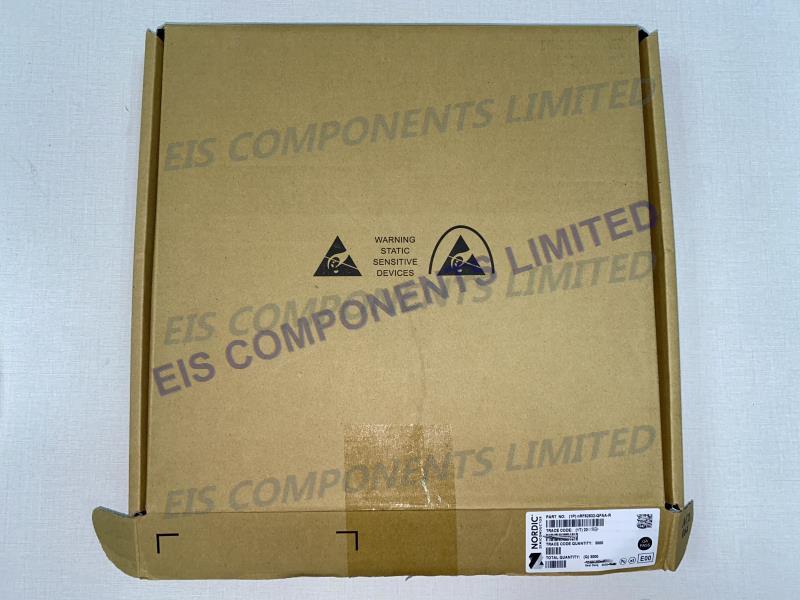

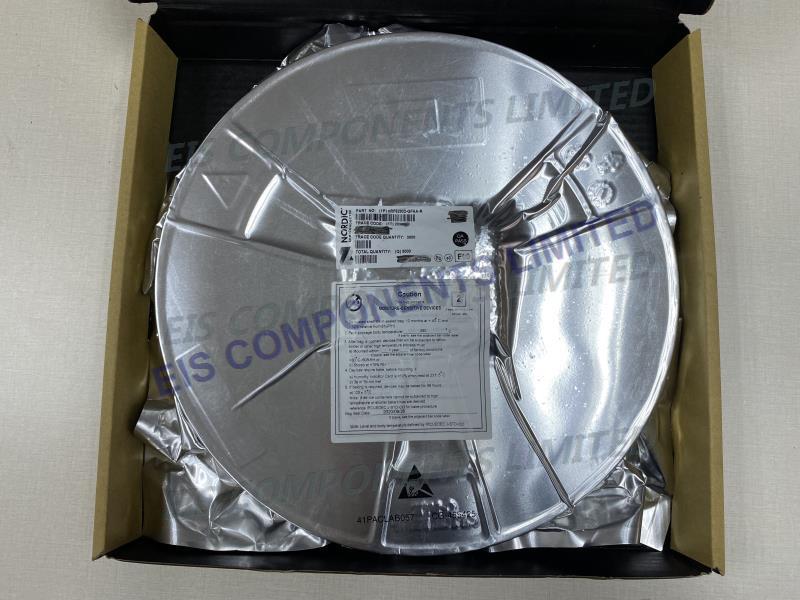

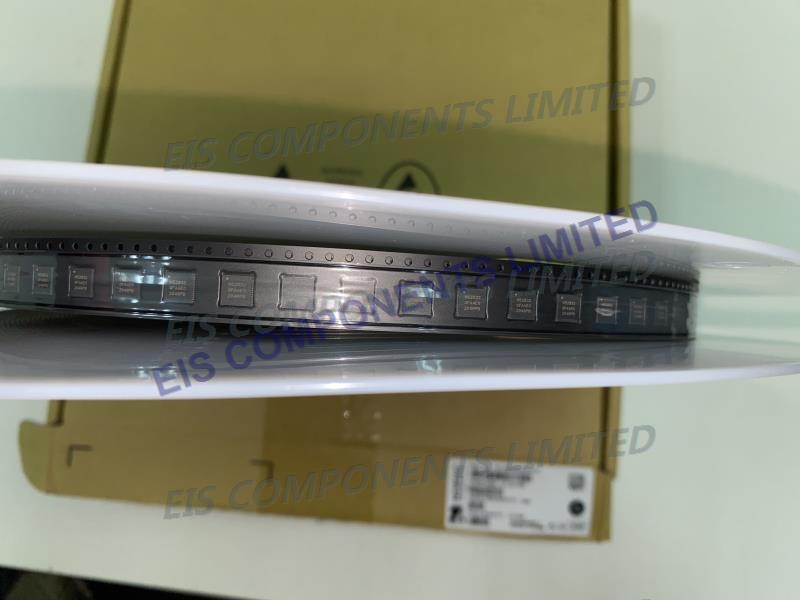

Photos of NRF52832-QFAA-R
NRF52832-QFAA-R NRF52832-QFAA-R NRF52832-QFAA-R NRF52832-QFAA-R NRF52832-QFAA-R NRF52832-QFAA-R
NRF52832-QFAA-R Overview
The nRF52832 Preview is a powerful multiprotocol single chip solutions for ULP wireless applications. It incorporates Nordic’s latest best-in-class performance radio transceiver, an ARM Cortex M4F CPU and 512kB flash and 64kB RAM memory. The nRF52832 Preview supports Bluetooth Smart (formerly known as Bluetooth low energy), ANT and 2.4GHz proprietary protocol stacks. The device also has a NFC-A tag interface for OOB pairing.

Key Features of nRF52832-QFAA-R  nRF52832-QFAA-R7 are as below:

Multi-protocol 2.4GHz radio 32-bit ARM Cortex M4F processor
512kB flash + 64kB RAM Software stacks available as downloads
Application development independent from protocol stack
On-air compatible with nRF51, nRF24AP and nRF24L
Series Programmable output power from +4dBm to -20dBm
RSSI RAM mapped FIFOs using EasyDMA
Dynamic on air payload length up to 256 Bytes
Flexible and configurable 32 pin GPIO
Programmable Peripheral Interface – PPI Simple ON/OFF global power modes
Full set of digital interfaces including: SPI/2-wire/UART/PDM/ I2S, all with EasyDMA 12-bit/200KSPS ADC 128-bit AES ECB/CCM/AAR co-processor Quadrature demodulator
Low cost external crystal 32MHz ± 40ppm for Bluetooth, ± 50ppm for ANT
Low power 32MHz crystal and RC oscillators
Ultra low-power 32kHz crystal and RC oscillators
Wide supply voltage range (1.7 V to 3.6 V)
On-chip DC/DC buck converter
Individual power management for all peripherals

Package options: 48-pin 6x6 QFN/WL-CSP


You can see the below photos images pictures of nRF52832-QFAA-R, you also can contact us for more photos.
